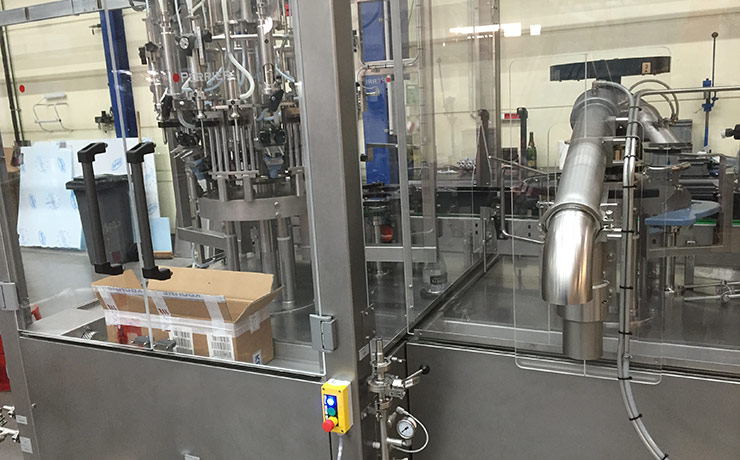

Champagne Disgorging


Principle Of Operation
  • A disgorging system especially designed for automatic lines:
    • PERRIER patented bottle neck handling system
    • Easy-to-clean design
    • Continuous and smooth bottle transfer, no shock
    • Output up to 18, 000 Bottles Per Hour (BPH)
    • Independent machine or triblock with dosing
  • Main features:
    • Stainless steel with gutters around
    • Disgorging stations can be easily removed for maintenance
    • Electrical carousel height adjustment for different bottle sizes

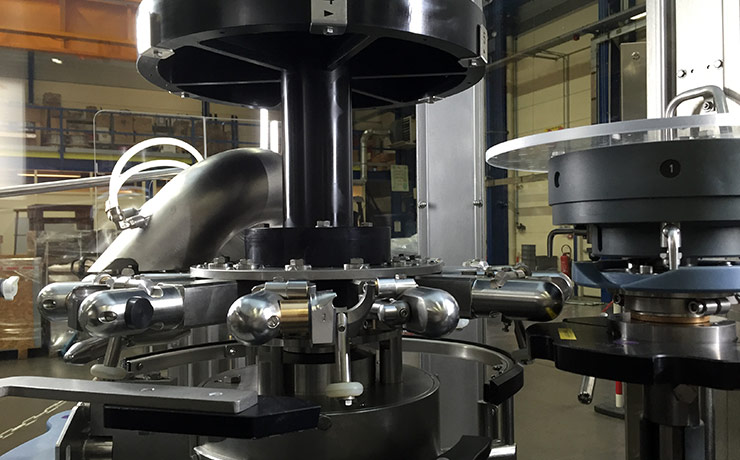

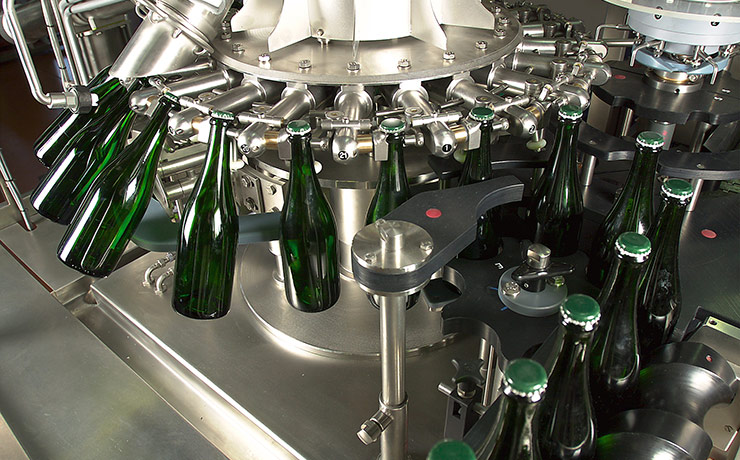

  • Bottle neck is handled by a gripping chuck and finger
  • Disgorging station: driven by the rotary movement of the carousel, the bottles are mechanically inclined through a plastic cam
  • Vacuum system helps cap and ice plug evacuation
  • Foreign object detector on discharge star option and rejection table option.
Inherent Machine Quality
In addition to design considerations, the high quality for which our machines are famous is achieved by selecting the best materials for the application. We also use the most modern manufacturing methods available and make our parts to very close tolerances. Our employees have many years of experience building the equipment to high standards of performance and take personal pride in ensuring the integrity of the PERRIER brand.
Quick Change Considerations
Our machines are designed and built to support the most progressive Quick Change concepts. The PERRIER changeover process is a true Quick Change process (not just tool-less) and supports Vertical Start up Concept. Once the setup is optimized during the first production run on a given format, it can be exactly replicated during the next changeover.
Environmental Considerations
Our machines are designed to be very lean and use the least possible energy to accomplish the task. PERRIER rinsers are designed to recapture the liquid rinsing media, filter it and reuse it. The longevity of the machine also minimizes waste by ensuring that the resources are used efficiently.
Safety
We take safety seriously and all our machines meet or exceed the safety requirements of the respective jurisdiction. In addition, PERRIER machines feature various safety provisions that might not be required by law, but are very effective in enhancing the safety of the operating crew. We also have experience in supplying machines for hazardous locations in diverse jurisdictions.
Life Cycle Support
We strive to provide the most reliable equipment in the industry, however, even our machines need to be serviced. We have a comprehensive program in place to provide world class service support to our customers. We maintain impeccable records on each and every machine, maintain critical spares inventory and offer fast turn around on tooling. Our service department offers training programs as well as installation and overhaul services. In addition we offer conversion and upgrade kits to ensure that PERRIER machines meet the changing needs of the customer.
